Vortex Drop Shaft

Vortex Drop Shaft

We specialize in providing advanced experimental and numerical solutions for complex hydraulic challenges, with a core focus on Vortex Drop Shaft design.

Our expertise encompasses:

• Vortex Drop Shaft Design: Utilizing advanced principles to design structures for safely conveying water, stormwater, and wastewater from higher to lower elevations.

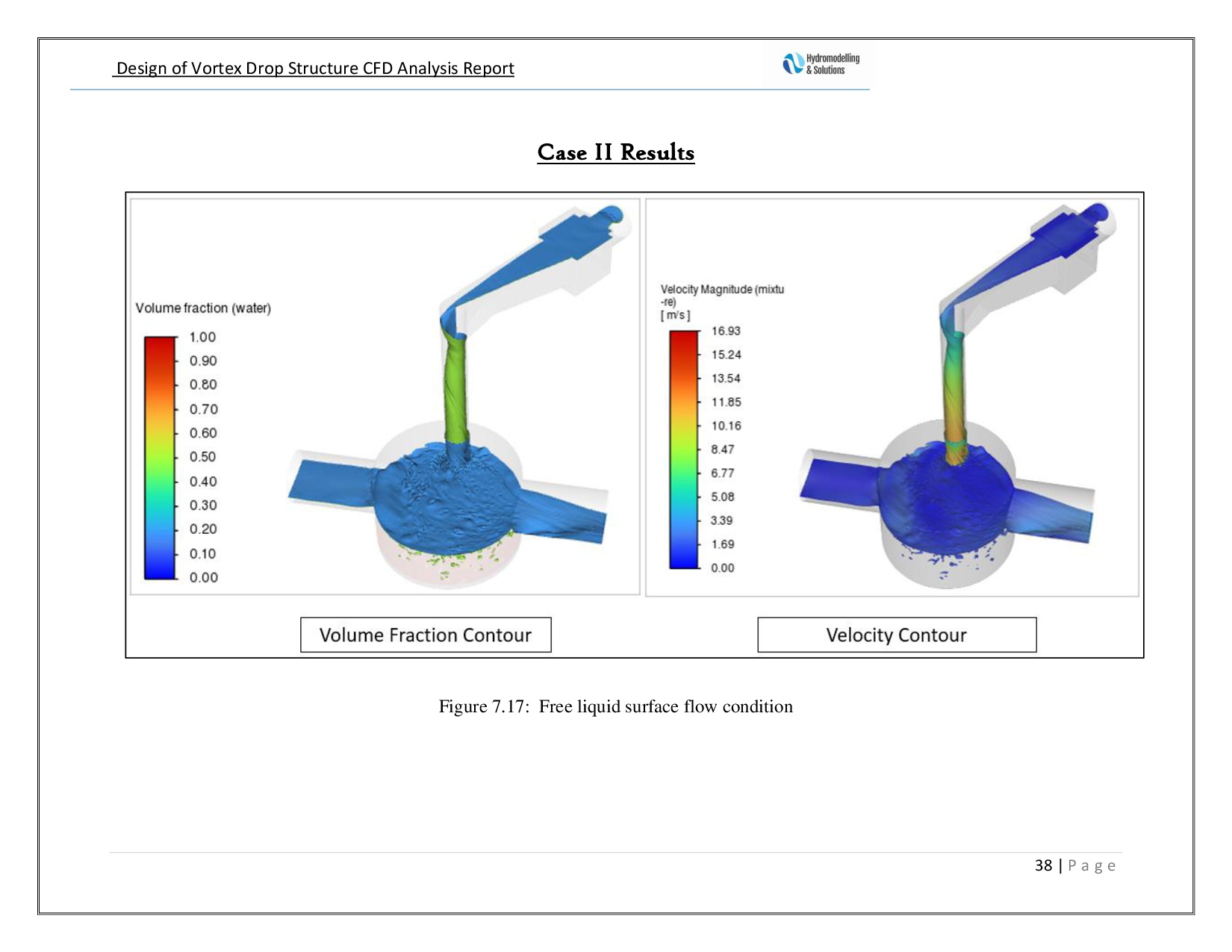

• Advanced Analysis: Conducting detailed CFD (Computational Fluid Dynamics) steady-state and transient analysis, alongside physical model studies, to ensure optimal performance.
• Project Aim: To mitigate severe hydraulic and structural issues such as highly turbulent flow, erosion, cavitation, and air entrapment that affect conventional drop shaft designs.

The Vortex Drop Shaft Advantage

Our design ensures that the flow spirals downward, dissipating energy through wall friction and generating a central air core. This air core is vital for:

• Energy Dissipation: Minimizing turbulence in downstream flow.
• Air Separation: Providing a clear upward escape path for entrapped air and harmful gases, preventing flow disturbances and cavitation damage.

We help ensure the smooth and effective conveyance of water and wastewater, protecting infrastructure and optimizing overall system performance.
